Thunderbolt™ 3 (USB type C) interface to the host computer -- No embedded PC required!
1 GS/s Real Time Sampling rate
2 channels sampled at 12 bit resolution
2.6 GB/s throughput across Thunderbolt 3
Thunderbolt 4 compatible
512 Megabytes of on-board Dual-Port Memory per channel
Variable frequency external clock capable
Fixed ±400 mV Input Range
High Signal to Noise Ratio
Continuous Streaming Mode
Trigger Input & Trigger Output connectors
Includes Thunderbolt 3 cable with single screw-lock for industrial-level ruggedness
AlazarDSO Software allows quick start-up
SDK for C/C++, C#, MATLAB, Python and LabVIEW
Support for Windows, Linux, and macOS

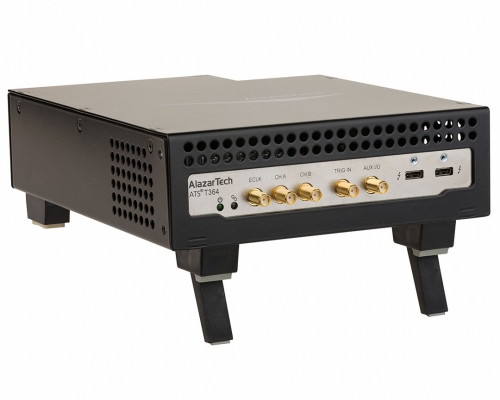

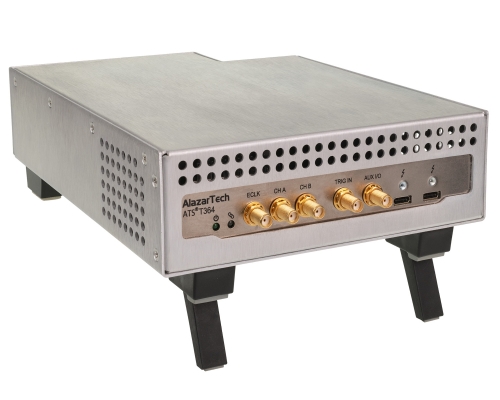

ATST364 - 12 bit, 1 GS/s
ATST364是一款低噪声、12位Thunderbolt 3接口的数据采集卡，每通道最高可达1GS/s的采样率。
With Thunderbolt 3 connectivity and data throughput as fast as 2.6 GB/s (2600 MB/s), ATST364 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
Any code developed for the AlazarTech ATS®9364 can be ported seamlessly to ATST364.
ATST364 interfaces to the host computer using the Thunderbolt 3 bus that runs at 40 Gbps.
