雷电™ 3 (USB type C) 接口连接到电脑-- 不需要嵌入式PC
每通道500MS/s的实时采样率
2 通道，12 位采样分辨率
雷电3接口，可达1.6GB/s的数据传输率
兼容雷电 4
250 MHz 的全功率带宽
±100 mV~±4 V的信号输入范围
连续流模式
NIST及CNRC可追踪校准
每通道256MS（兆个采样）的板载双端口内存
触发输入和触发输出连接端口
带单螺丝锁的Thunderbolt 3电缆，可实现工业级的坚固性
不带外壳的OEM版本可用于集成到您的产品中
AlazarDSO软件方便快速上手
SDK支持C/C++,C#, Python, MATLAB和LabVIEW开发工具
支持Windows、Linux和macOS操作系统

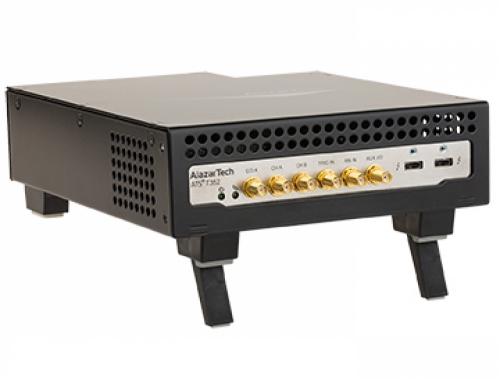

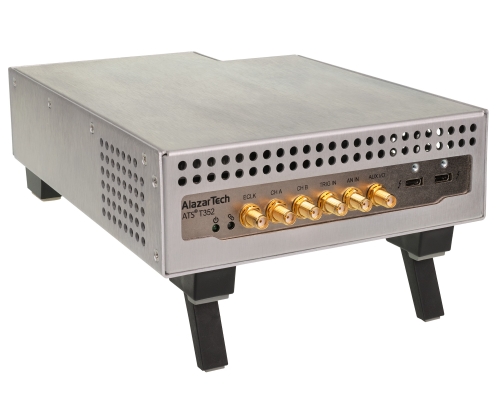

ATST352 - 12 bit, 500 MS/s
ATST352 is a 12-bit Thunderbolt 3-based waveform digitizer that can sample two analog inputs at rates up to 500 MS/s.
With Thunderbolt 3 connectivity and data throughput as fast as 1.6 GB/s (1600 MB/s), ATST352 is an ideal solution for many applications, including OCT, radar, ultrasonics, spectrometry, and RF signal recording.
Any code developed for the AlazarTech ATS®9352 can be ported seamlessly to ATST352.
ATST352 interfaces to the host computer using the Thunderbolt 3 bus that runs at 40 Gbps.
