Allows simultaneous sampling across multiple AlazarTech waveform digitizers
Four coherent clock outputs
Four synchronous trigger outputs
Internal clocking up to 1 GHz
External clocking up to 2 GHz
Trigger holdoff function for safe synchronous arming of multiple boards
USB 2.0 controlled
C++ sample program for use with ATS-SDK for user programmability
Support for Windows; Linux support coming soon

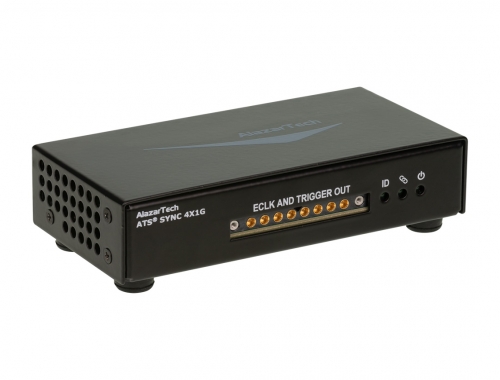

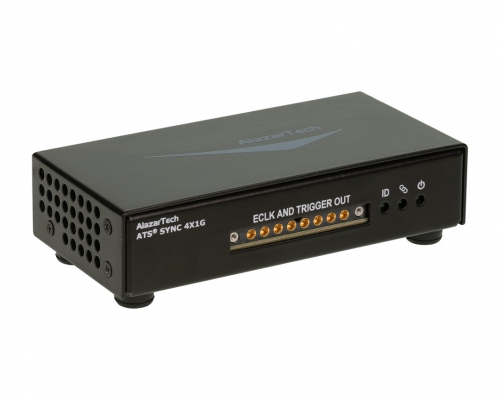

ATS Sync 4X1G
ATS Sync 4X1G is a device that allows simultaneous sampling across multiple independent AlazarTech waveform digitizers. This is achieved by providing common clock and trigger signals to each digitizer.
ATS Sync 4X1G supports Trigger Enable and Trigger Disable so that users can delay triggering until all digitizers are armed; this is a distinct advantage over passive signal splitters.
